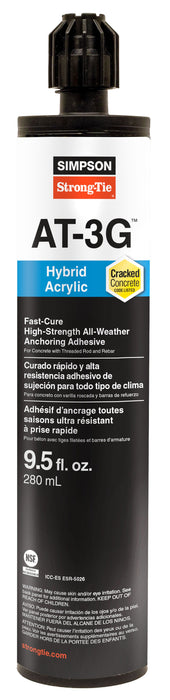

AT-3G™ High-Strength Hybrid Acrylic Adhesive
Simpson Strong-Tie - AT-3G™ High-Strength Hybrid Acrylic Adhesive 9.5fl oz
Anchoring Adhesive
AT-3G is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, AT-3G dispenses easily and offers a fast curing time for same-day bolt up. It can be specified for a wide range of in-service temperatures, and maintains its strong bond strength in extreme environments for ultimate design and jobsite flexibility. Tested and code compliant with the IBC and IRC, AT-3G hybrid adhesive is easy to install with the conventional blow-brush-blow hole cleaning method.
Key Features
- Excellent for use in cold weather conditions or applications where fast cure is required
- Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
- Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
- Base material installation temperatures down to 23 F (-5 C)
- Down to 0 F (-18 C) with reductions
- Use in grout-filled CMU construction
- Use of a vacuum in lieu of compressed air for hole cleaning
- Installation into oversized holes
- Installation in holes drilled with diamond core bits
Applications

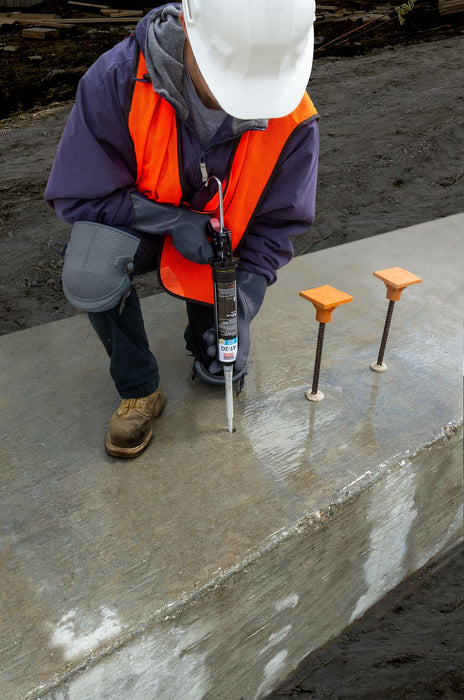

- Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under a wide variety of environmental installation and use conditions
- Installation in downward, horizontal and upwardly inclined (including overhead) orientations
- Base material installation temperatures down to 23 F (-5 C)
- Down to 0 F (-18 C) with reductions
- Qualified for use in structures assigned to Seismic Design Categories A through F
Color - Gray
Usage Temperature - Base material installation temperatures down to 23 F (-5 C)
Down to 0 F (-18 C) with reductions
Mixing Ratio -10:1 hybrid-acrylic
Storage Conditions - 41°F (5°C) and 77°F (25°C)
Shelf Life - 18 months
VOC - 41 g/L
Installation:
- Surfaces to receive adhesive must be clean per approved hole cleaning method.
- Base-material temperatures must be 23°F (-5°C) or above at the time of installation.
- Suitable for installation down to 0 F (-18 C) with reductions.
- To warm cold adhesive, store cartridges in a warm, uniformly heated area or storage container. Do not
- immerse cartridges in water or use microwave to facilitate warming.
- Mixed material in nozzle can harden in 2-3 minutes at temperatures of 70°F (21°C) and above.
- Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions.
- Modification or improper use of mixing nozzle may impair AT-3G adhesive performance.
Get Extra Mixing Nozzles Here
Download Installation Guide Here
Adhesive Anchoring Installation Instructions
